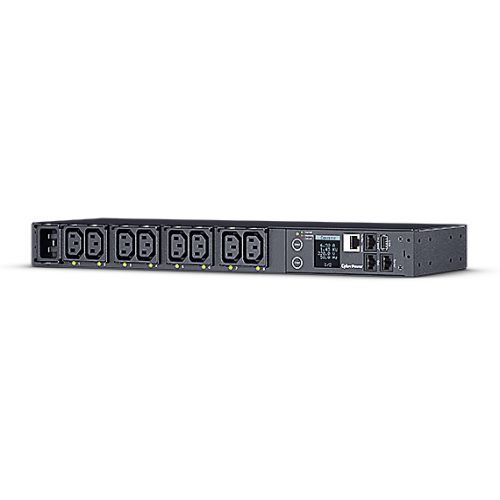

CyberPower PDU41005 Switched Power Distribution Unit, 1U Rackmount, 1x IEC C20 Input, 8 Outlets, Real-Time Local/Remote Monitoring & Switching, LCD Display

CyberPower PDU41005 Switched Power Distribution Unit, 1U Rackmount, 1x IEC C20 Input, 8 Outlets, Real-Time Local/Remote Monitoring & Switching, LCD Display

SKU: PDU41005
£374.59
£374.59
Sale Sold out
Shipping calculated at checkout.


CyberPower PDU41005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments.


  • Real-time Local/Remote Monitoring and Switching
  • Work under High Temperature
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Support ENVIROSENSOR
  • PowerPanel Management Software
  • Cord Retention Tray
  • Controllable Receptacles with Power Sequencing
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking




The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The digital LCD display is colour configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Description

Specification

  • Type: Switched
  • Phase: Single Phase
  • Input: Nominal Input Voltage: 100 ~ 240 Vac
    Input Frequency: 50 / 60 Hz
    Maximum Input Current: 16A
    Input Connector Type: IEC C20 x 1
    Power Cord Length: 10 ft
    Power Cord Length: 3.05 m
  • Output: Output Voltage: Depends on Input
    Outlets - # of Bank(s): 1
    Outlet(s): 8 Total
    Outlet(s) Front: 8
    Outlet Type: IEC C13 x 8
    Remote Individual Outlet Control
  • LCD Information Display: Input Voltage (Volts)
    Input Frequency (Hz)
    Current Level (Amps)
    Power Consumption (Kilowatts)
    Network Information
    Serial Number
    Environment Status
    Hardware Version
    Firmware Version
  • Colour LCD: Yes
  • Hot-swappable LCD Module: Yes
  • LCD Setting & Control: Outlet Control
    LCD Settings
    Reset / Reboot
  • LED Indicators: "PDU Status, Tx/Rx, Link, Outlet"
  • Additional Ports: 1 x USB-A
    RJ45
    RJ45 (for Serial)
    RJ45 (for ENVIROSENSOR/Daisy Chain (In))
    RJ45 (for Daisy Chain (Out))
  • Form Factor: 1U Vertical Rackmount
    1U Horizontal Rackmount
  • Enclosure Construction: Steel
  • Cord Retention Tray: Yes
  • IEC Receptacle Locking: Yes
  • External Site Ground Pin: Yes
  • Adjustable Mounting Brackets: "2 Set (L-short, L-long)"
  • Weight/Dimensions : 2.1 kg
    (WxHxD) 433 x 44 x 112mm
  • Environmental: "High Temperature Operation
    Operating Temperature: 0 ~ 55 °C
    Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
    Operating Elevation: 0-11,483 feet (0-4,000 meters)
    Storage Temperature: -15 ~ 60 °C
    Storage Relative Humidity (Non-condensing): 0 ~ 95 %
    Storage Elevation: 0-49,213 feet (0-15,000 meters)"
  • Certifications: "Certifications: CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368

    RoHS: Yes"
  • Additional Features: Real-time Local/Remote Monitoring and Switching
    Industrial-grade Metal Housing
    User Configurable Colour LCD
    PowerPanel Management Software
    Controllable Receptacles with Power Sequencing
    Digital Real-time Load Display
    Hot-swappable LCD Design
    Firmware Upgrade via USB
    User-upgradeable Firmware
    Adjustable Mounting Brackets
  • Package Contents: PDU41005
    Manual
    Cord Retention Tray
    Mounting Brackets
    Cable Ties
    Screw Kit
    Power Cord
    Serial Cable
  • Package Weight: 2.1000 kg
  • Warranty: 2 Years - direct with CyberPower
