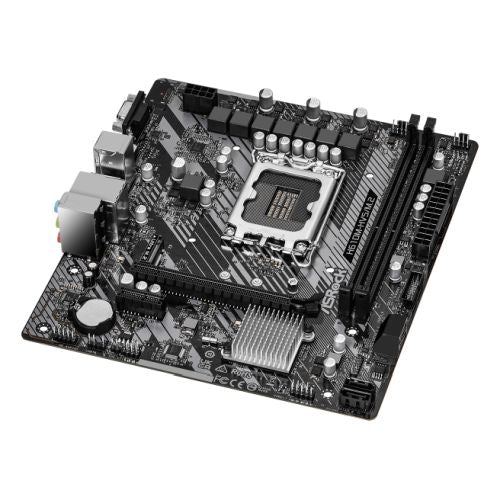

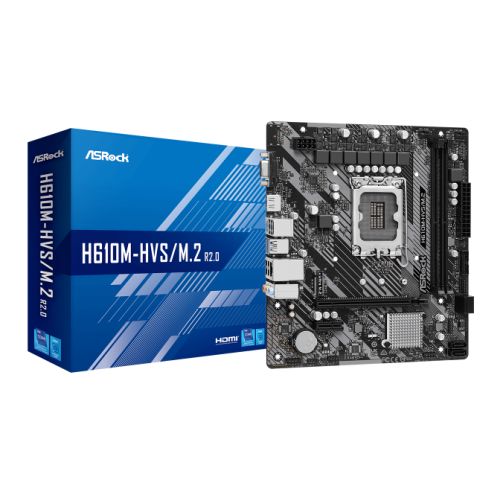

• Asrock H610M-HVS/M.2 R2.0, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2
1 5

ASROCK

Asrock H610M-HVS/M.2 R2.0, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

Asrock H610M-HVS/M.2 R2.0, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

SKU: H610M-HVS/M.2 R2.0
£60.59
£60.59
Sale Sold out
Shipping calculated at checkout.




H610M-HVS/M.2 R2.0



  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 7 Phase Power Design
  • Supports DDR4 3200MHz
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
  • 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN




Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.



Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.



Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.



HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.



Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.



Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.



Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.



Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 3200 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
  • USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
    6 x USB 2.0 (4 at back, 2 at mid-board)"

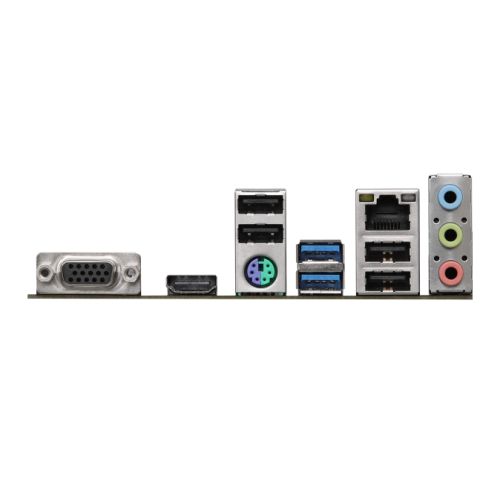

  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x HDMI
    2 x USB 3.2 Gen1
    4 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: "Quick Installation Guide, Support CD, I/O Shield
    2 x SATA Data Cables
    1 x Screw for M.2 Socket"
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.8040 kg
  • Warranty: 2 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
View full details
