TP-LINK (ER8411) Omada VPN Router with 10G Ports, Omada SDN, 2x 10GE SFP+, Up to 10 WAN, Abundant Security Features

TP-LINK (ER8411) Omada VPN Router with 10G Ports, Omada SDN, 2x 10GE SFP+, Up to 10 WAN, Abundant Security Features

SKU: ER8411
£363.17
£363.17
Sale Sold out
Shipping calculated at checkout.



Omada VPN Router with 10G Ports


  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Two 10GE SFP+ Ports: 1x WAN and 1x WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
  • Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
  • Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
  • Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.




What This Product Does

The ER8411 Omada 10G Multi-WAN Security Gateway from TP-Link boasts excellent data processing capabilities and an array of powerful functions, including SSL/ IPSec / PPTP / L2TP VPN & OpenVPN, Load Balance, Access Control, DoS Defense, and Bandwidth Control. Two 10GE SFP+ ports and up to 10 WAN ports allow for high-bandwidth aggregation connectivity and multi-line broadband. As a router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER8411 provides for remote and centralized management anywhere, anytime.

Integration into Omada SDN for Centralized Management
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER8411 allows for remote and centralized management anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. View network topology and configuration, real-time switch statistics, and debugging metrics from a single easy-to-use interface.






High-Capacity Performance

Featuring two 10G SFP+ ports (1 WAN, 1 WAN/LAN), the Security Gateway ER8411 supports high-bandwidth aggregation connectivity for enterprise-level businesses, schools, hotels, and large-scale deployments.





Intelligent Bandwidth Allocation

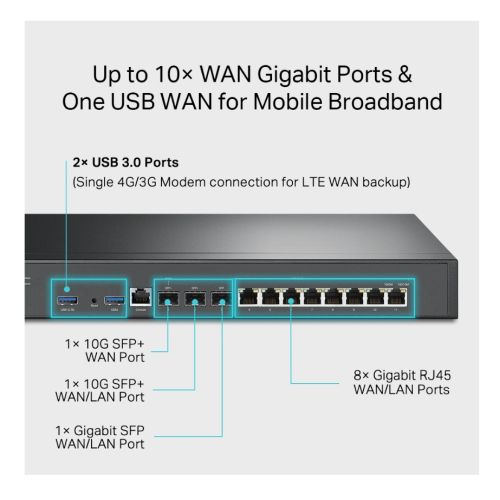

The ER8411 features 1x 10GE SFP+ WAN port, 1x 10GE SFP+ WAN/LAN port, 1x 1GE SFP WAN/LAN ports, and 8x 1GE RJ45 WAN/LAN ports, raising the utilization rate of multi-line broadband. Intelligent Load Balance distributes data streams according to the bandwidth proportion of each WAN port to make the most of multi-line broadband. IP-based Bandwidth Control and Session Limit functions give network administrators the power to manage how their bandwidth is used flexibly.





Enterprise-Standard VPN

The ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPsec, PPTP, and L2TP in Client/Server mode. It also features built-in VPN engine hardware, allowing the router to support and manage LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, and Main/Aggressive negotiation modes.





Abundant Security Features
  • Powerful Firewall: Advanced firewall policies protect your network and data
  • Convenient VLAN Support: Create virtual network segments for enhanced security and simplified network management.
  • DoS Defense: Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
  • IP/MAC/URL Filtering: Forcefully prevent viruses and attacks from intruders.
  • IP-MAC Binding: Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
  • One-Click ALG Activation: One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.



Description

Specification

  • Type: VPN Router
  • Connectivity: Wired
  • Max Wired Transfer Rate: 10 Gbps
  • Interface(s): "2 x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
    1 x 1GE SFP WAN/LAN Ports
    8 x 1GE RJ45 WAN/LAN Ports
    1 x RJ45 Console Ports
    2 x USB Ports (Connecting 4G/3G Modem as WAN Backup)"
  • IEEE Standards & Protocols: "IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

    TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP"
  • Button(s): Reset Button

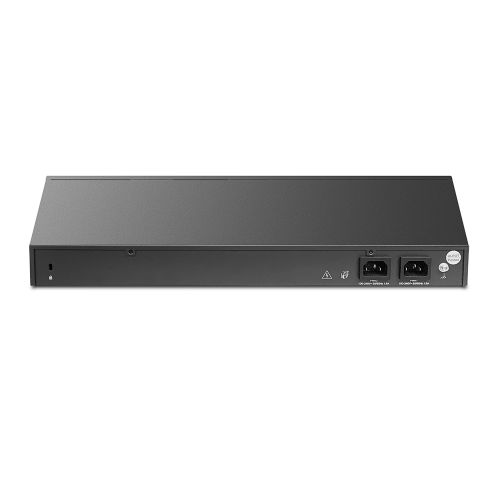

  • Power Supply: "Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)"
  • Dimensions: (WxDxH) 440 x 220 x 44 mm
  • Security: "SPI Firewall
    VPN Passthrough
    FTP/H.323/PPTP/SIP/IPsec ALG
    DoS Defence, Ping of Death
    Local Management

    Filtering
    WEB Group Filtering§
    URL Filtering

    Web Security
    ARP Inspection
    Sending GARP Packets§
    ARP Scanning
    IP-MAC Binding

    Attack Defense
    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN

    Access Control
    Source/Destination IP Based Access Control"
  • DHCP: DHCP Server/Client
    DHCP Address Reservation
    Multi-net DHCP
    Multi-IP Interfaces
  • VPN Support: "Enterprise-Standard VPN

    Pass-through traffic & Multiple VPN protocols
    Including SSL, IPsec, PPTP, and L2TP in Client/Server mode

    Built-in VPN engine hardware
    Allow router to support and manage LAN-to-LAN/Client-to-LAN IPsec VPN connections

    Advanced
    DES/3DES/AES128/AES192/AES256 encryption
    MD5/SHA1 authentication
    Main/Aggressive negotiation modes"
  • Management: Omada App
    Centralized Management
    Cloud Access

    Maintenance
    Time Setting
    Diagnostic
    Firmware Upgrade
    Factory Defaults/Reboot
    Backup&Restore
    System Log
    Remote Management
    Statistics
    Controller Settings
    SNMP

    Management Features
    Automatic Device Discovery
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
    Captive Portal Configuration
  • Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe"
  • USB Application: Connecting 4G/3G Modem as WAN Backup
  • Additional Features: "ACL
    IP/Port/Protocol/Domain Name Filtering
    Advanced Routing
    Static Routing
    Policy Routing
    Bandwidth Control
    IP/Port-based Bandwidth Control
    Guarantee & Limited Bandwidth
    Load Balance
    Intelligent Load Balance
    Application Optimized Routing
    Link Backup (Timing, Failover)
    Online Detection"
  • .: "NAT
    One-to-One NAT§
    Multi-Net NAT
    Virtual Server
    Port Triggering§
    NAT-DMZ
    FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

    Session Limit
    IP-based Session Limit"
  • Environment: Operating Temperature: 0–40°C (32–104°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: Omada 10G Multi-WAN Security Gateway ER8411
    Power Cord
    Rack-Mount Kit
    Quick Installation Guide
  • Package Type: Retail
  • Package Weight: 4.3000 kg
  • Warranty: Limited Lifetime
